Details

●Producing

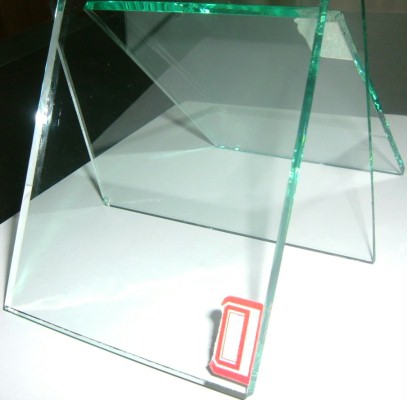

Clear float glass - White glass,is formed when the molten glass enters the tin bath via control gate and then enters the cooling bath after floats on the surface of molten tin under the actionof centrifugal force and its surface tension, to get the two sides of glass to be smooth and even and ripple to disappear.

Tinted Color Glass, is also produced by floating technology above, at the same time materials are tinted color,such as blue,green,bronze,gray etct.

● Characteristic

Smooth surface with no ripple, good perspectiv

● Application

For further processing for tempered glass, laminated glass, insulated glass, low-E glass, reflective glass, acid etched glass, frosted g mirrors, color printed glass, glass window door and so on

● Thickness Range 3mm-12m,15mm,19mm,22mm

Packing List & Loading for 1X20' Container

THICKNESS	SIZE		PCS/CRATE	CRATE/CONT
3.2	2440	1830	74	10
4	2440	1830	60	10
4	2140	3300	38	10
4.6	2440	1830	52	10
4.6	2140	3300	32	10
5	2440	1830	48	10
5	2140	3300	30	10
5	2250	3300	28	10
5	2140	3660	26	10
5.5	2140	3300	27	10
5.5	2250	3300	26	10
6	2440	1830	40	10
6	2140	3300	25	10
6	2250	3300	24	10
6	2140	3660	22	10
8	2440	1830	30	10
8	2140	3300	18	10
8	2250	3300	18	10
8	2140	3660	16	10
10	2440	1830	24	10
10	2140	3300	15	10
10	2250	3300	14	10
10	2140	3050	15	10
10	2140	3660	13	10
10	2440	3660	12	10
12	2440	1830	20	10
12	2140	3300	12	10
12	2250	3300	12	10
12	2140	3050	12	10
12	2140	3660	11	10
12	2440	3660	10	10
